Home >> Hyundai >> 2021 >> Palisade Limited, 4WD >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Front Driveshaft Assembly >> BJ Boot >> Components & Components Location >> Components >> RH

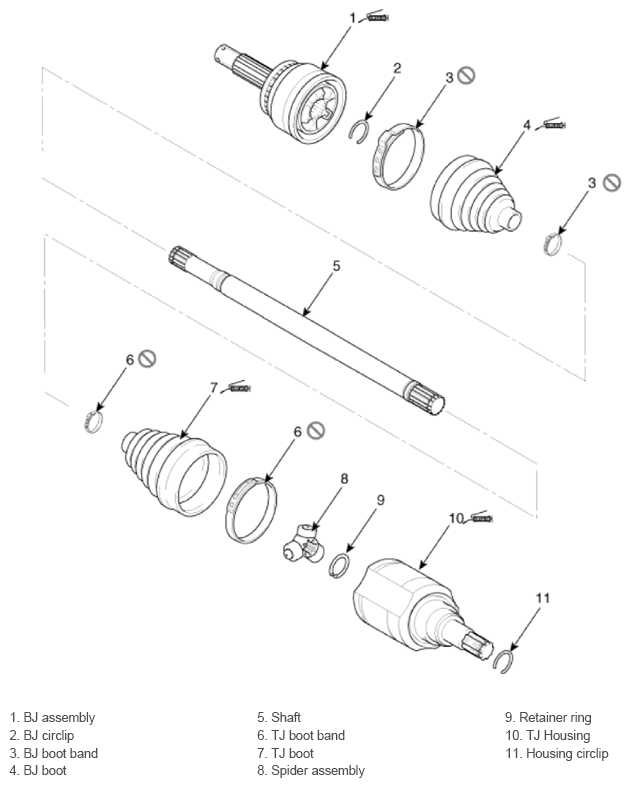

Components & Components Location: Components: RH

G14424525

Courtesy of HYUNDAI MOTOR AMERICA
