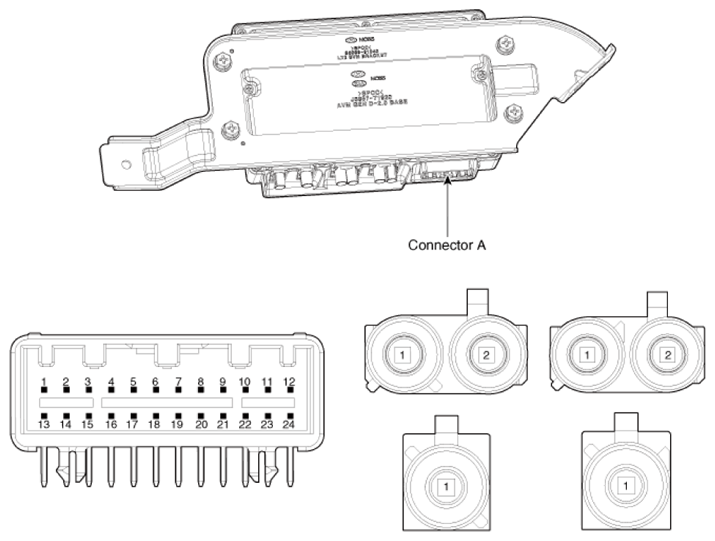

SVM Unit
| No | Connector A |
|---|---|
| 1 | ACC |
| 2 | LED |
| 3 | EXT Ground |
| 4 | Y Shield |
| 5 | - |
| 6 | C-CAN Low |
| 7 | Y Video ground |
| 8 | - |
| 9 | - |
| 10 | Rear camera power |
| 11 | Left camera power |
| 12 | Right camera power |
| 13 | Ignition |
| 14 | AVM switch |
| 15 | - |
| 16 | C Shield |
| 17 | - |
| 18 | C-CAN High |
| 19 | C video ground |
| 20 | C video output |
| 21 | - |
| 22 | - |
| 23 | Left camera ground |
| 24 | Right camera ground |
