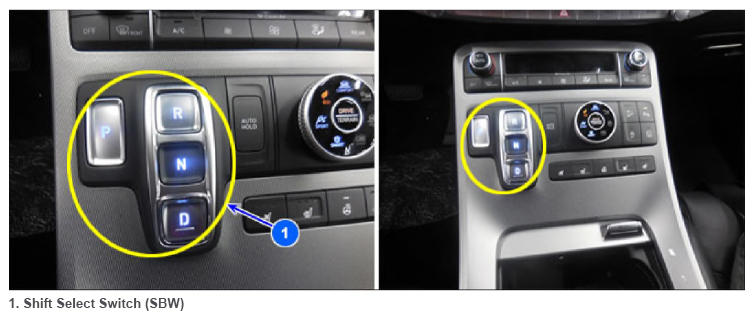

Shift Select Switch

G14461240Courtesy of HYUNDAI MOTOR AMERICA

The electronic shift button performs the function of transmitting the driver's shift intention to the SCU by an electrical signal.

  1. Improves the convenience of shifting when driving/parking with button operation
  2. Increase the safety of the vehicle by applying safety logic such as automatic P-stage fastening when starting off, P-stage fastening when the door is open while driving
  3. Reduction in size compared to mechanical shift lever increases console space usability and design freedom
