Repair Procedures: Installation
- To install, reverse the removal procedures.
- The existing valve body cover gasket (A) must be replaced with a new one. (Do not reuse it.)
- Perform the procedures below after in replacing the valve body assembly.
- Refill the automatic transaxle with fluid.
(Refer to Hydraulic System - "SPECIFICATIONS , and AUTOMATIC TRANSAXLE FLUID (ATF) ").
- Add the coolant. [In case by ATF warmer apply]
(Refer to Engine Mechanical System - "COOLANT ")
- Clear the diagnostic trouble codes (DTC) using the diagnostic tool. Disconnecting the battery negative terminal will not clear the DTCs. Clear DTCs using the diagnostic tool at all times.

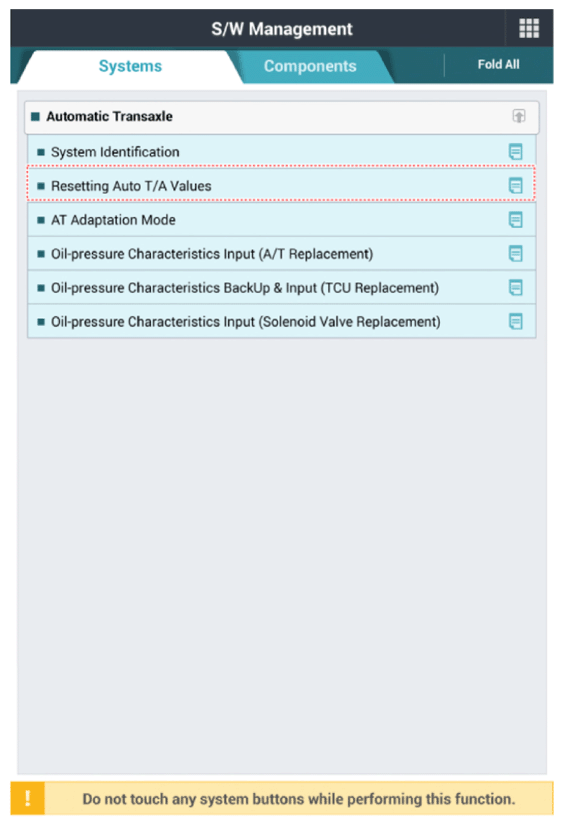

- Reset the automatic transaxle adaptive values using the diagnostic tool.

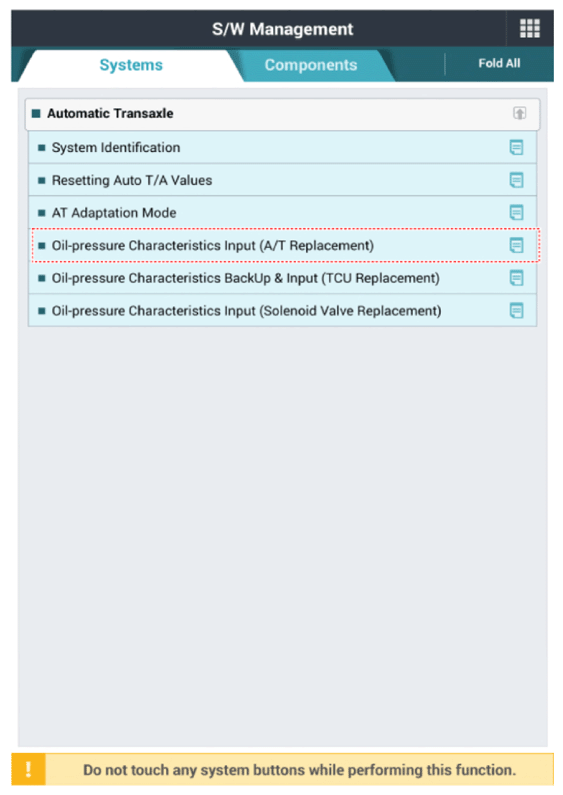

- Perform the oil pressure characteristics input procedure using the diagnostic tool.
- Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
- After installing, check for leakage of fluid from hose connection during engine start.
