Repair Procedures: Installation
- Disconnect the battery negative cable from battery and wait for at least three minutes before beginning work.

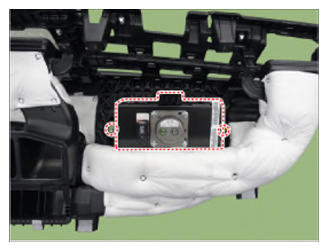

- Place a passenger airbag on the crash pad and tighten the passenger airbag mounting bolts (A).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
- Install the main crash pad.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")
- Tighten the passenger airbag mounting bolts and then connect the passenger airbag harness connector.
Tightening torque:
8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb-ft)
- Install the Glove box housing
(Refer to Body - "GLOVE BOX ")
- Reconnect the battery cable (-).
- After installing the passenger airbag, confirm proper system operation:
Turn the ignition switch ON; the SRS indicator light should turn on for about six seconds and then go off.
