Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Loosen the mounting nuts and then remove the knee airbag (A).
    G14426867Courtesy of HYUNDAI MOTOR AMERICA

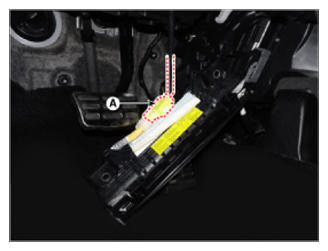

  4. Disconnect the knee airbag connector (A).
    G14426868Courtesy of HYUNDAI MOTOR AMERICA
