Repair Procedures: Removal

  1. Set the front tires straight-ahead.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.

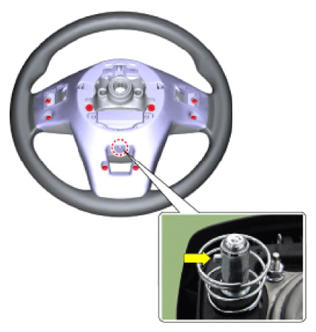

  3. Put a flat tool (Ø5 mm) into a guide hole located in the bottom of steering wheel and press a DAB fastening pin.
    G14426848Courtesy of HYUNDAI MOTOR AMERICA

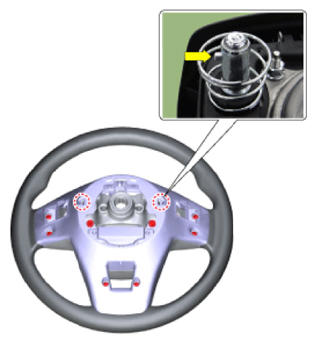

  4. Put a flat tool (Ø5 mm) into a guide hole located in the left/right of steering wheel and press a DAB fastening pin.
    G14426849Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

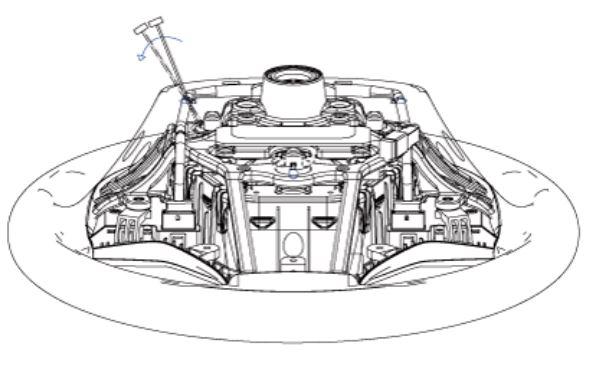

    • After inserting the tool (A), press the DAB fastening pin (B) in the direction of the arrow as shown in illustration below.
      G14426850Courtesy of HYUNDAI MOTOR AMERICA

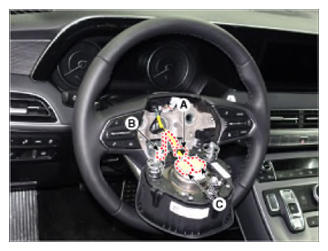

  5. Release the connector locking (A), then disconnect the DAB connector (C) and horn connector (B).
    G14426851Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the steering wheel.

    (Refer to Steering System - "REMOVAL ")

  7. Loosen the steering wheel column shroud panel.

    (Refer to Body - "STEERING WHEEL COLUMN SHROUD PANEL ")

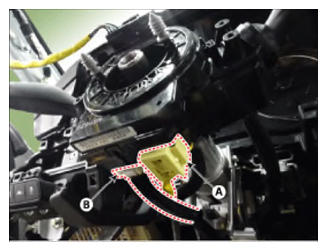

  8. Disconnect the clock spring (A) and horn connector (B), then remove the clock spring.
    G14426852Courtesy of HYUNDAI MOTOR AMERICA
