Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim assembly.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

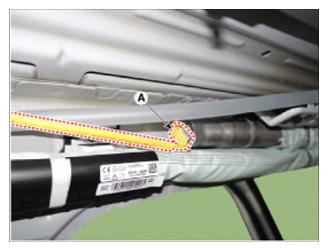

  3. Disconnect the curtain airbag connector (A).
    G14426864Courtesy of HYUNDAI MOTOR AMERICA

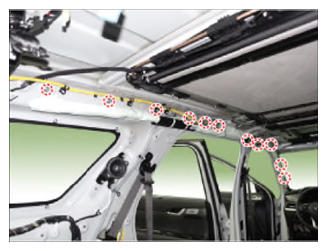

  4. After loosening the mounting bolts & nuts remove the curtain airbag.
    G14426865Courtesy of HYUNDAI MOTOR AMERICA
