Repair Procedures: Removal

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

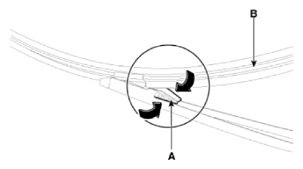

  2. If necessary, release the wiper blade fixing clip (A) by pulling up and remove the wiper blade (B) from the inside radius of wiper arm.
    G15473623Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the cowl top cover. (Refer to Body - "COWL TOP COVER ")

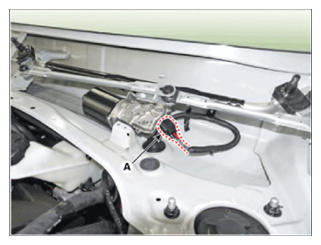

  4. Disconnect the wiper motor connector (A) from the wiper motor & linkage assembly.
    G15473624Courtesy of HYUNDAI MOTOR AMERICA

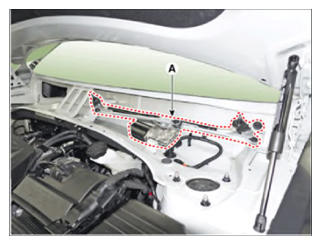

  5. Remove the windshield wiper motor and linkage assembly (A) after removing 2 bolts.
    G15473625Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Before removing the wiper motor and linkage assembly, make sure that the linkage is stopped at auto stop position.
    To install the wiper motor crank arm exactly, check that the linkage is aligned with the crank arm in straight line and the angle of each linkages. Be careful not to bend the linkage.

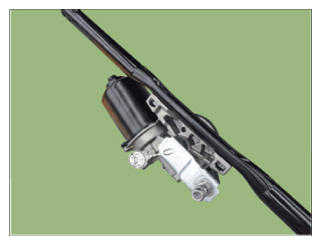

  6. Remove the wiper motor (A) after removing the bolts, nut.

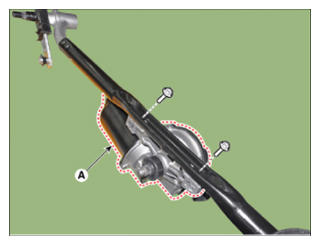

    G15473626Courtesy of HYUNDAI MOTOR AMERICA
    G15473627Courtesy of HYUNDAI MOTOR AMERICA
