Repair Procedures: Removal
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Failure to do so could result in premature pump failure.
- When servicing the washer pump, be careful not to damage the washer pump seal.
- Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.
- Disconnect the negative (-) battery terminal.
- Remove the front bumper cover. (Refer to Body - "FRONT BUMPER COVER ")

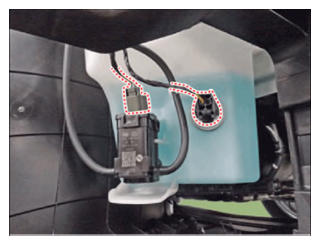

- Separate the washer hose and then disconnect the motor and level sensor connector.

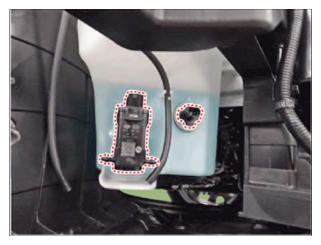

- Remove the washer motor and level sensor.

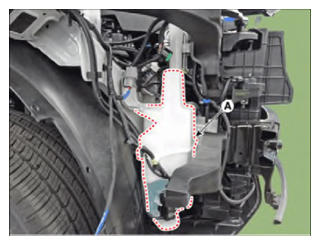

- Remove the washer reservoir (A) after loosening bolts.
