Components & Components Location: Components

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of HYUNDAI MOTOR AMERICA

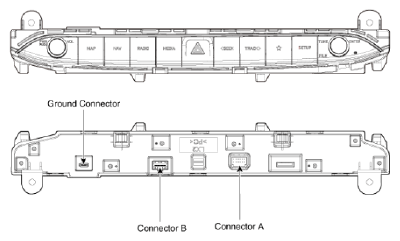

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-
	2	Battery (+)
	3	ACC
	4	-
	5	Illumination (-)
	6	Illumination (+)
	7	MM_CAN (LOW)
	8	MM_CAN (HIGH)
	9	-
	10	GND
	11	-
	12	Basel

Connector B	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Battery (+)
	2	Hazard indicator
	3	Ground
	4	Hazard Switch
	5	-
	6	-
