Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

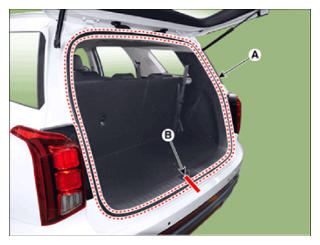

  1. Remove the liftgate weatherstrip (A).
    NOTE:
    • Do not apply sealant to the body.
    G15472628Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse removal procedure.

    Information

    • When installing the liftgate weatherstrip, check the center-marking line (B).
