Repair Procedures: Replacement
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Wear gloves to protect hands from injury.
- Take care not to scratch the body surface.
- Remove the tailgate lower trim. (Refer to tailgate - "TAILGATE TRIM ")

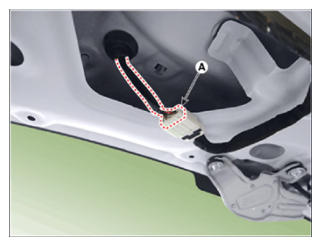

- Press the lock pin and separate the rear view camera connector (A).

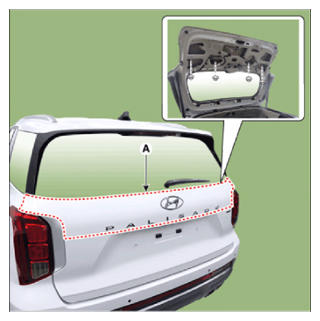

- Loosen the mounting nuts and remove the tailgate back panel (A).
- To install, reverse removal procedure.
Information
- Make sure the tailgate locks and opens properly and locks securely.
- Replace any damaged clips.
