Repair Procedures: Replacement
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Wear gloves to protect hands from injury.
- When removing and installing the tailgate, an assistant is needed.
- Remove the tailgate trim. (Refer to tailgate - TAILGATE TRIM ")

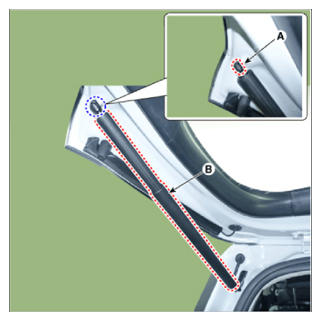

- Using a screwdriver, lift the socket clips (A) up slightly on both ends of the tailgate lifter (B).

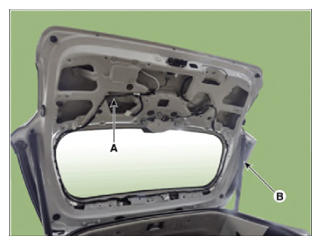

- Disconnect the connectors and liftgate wiring harness (A).
- After loosening the mounting bolts, then remove the tailgate assembly (B).
Tightening torque:
21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)
- To install, reverse removal procedure.
Information
- Make sure the tailgate locks/unlocks and opens/closes properly.
- Adjust the tailgate alignment.
- Make sure the connectors are connected in properly.
- Replace any damaged clips (or pin-type retainers).
