Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

CAUTION:

Take care not to bend or scratch the trim and panels.

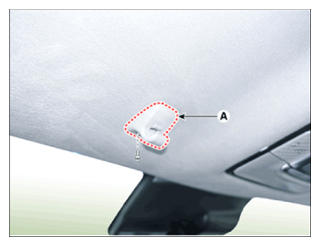

Remove the sunvisor pivot cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

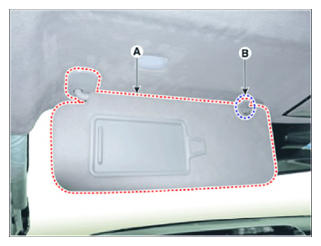

Loosen the mounting screw and seperate the sunvisor (A).

Courtesy of HYUNDAI MOTOR AMERICA

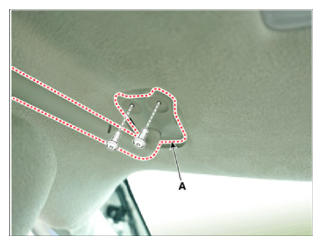

Loosen the mounting screws and remove the retainer (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
