Repair Procedures: Replacement
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
CAUTION:
- Take care not to bend or scratch the trim and panels.
- Remove the front seat.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
- Remove the rear seat.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
- Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim ")
- Remove the rear pillar trim.
(Refer to Interior Trim - "Rear Pillar Trim ")
- Remove the sunvisor and retainer.
(Refer to Roof Trim - "Sunvisor ")
- Remove the assist handle.
(Refer to Roof Trim - "Assist Handle ")
- Remove the overhead console lamp.
(Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")
- Remove the room lamp.
(Refer to Body Electrical System - "Room Lamp ")
- Remove the ECM mirror connector.
(Refer to Body Electrical System - "ELECTRO CHROMIC INSIDE REAR VIEW MIRROR ")

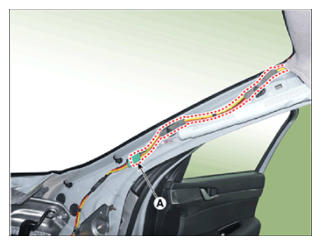

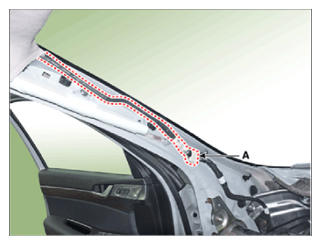

- Separate the roof trim main connector (A) from the front pillar section.
[LH]
[RH]

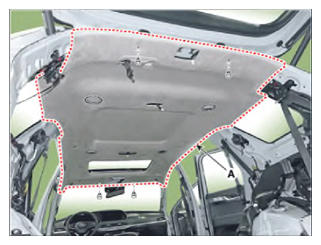

- Remove the roof trim mounting clip and remove the roof trim assembly (A).

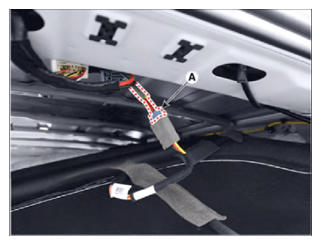

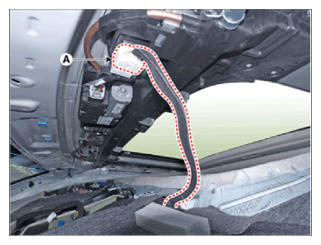

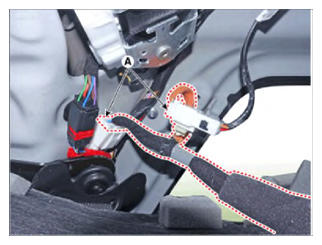

- Separate the roof trim various connector (A).
[Front]
[Center]
[Rear]

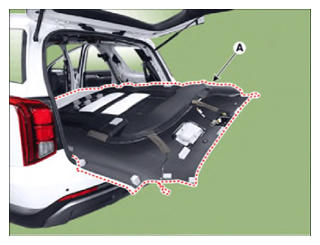

- Remove the roof trim assembly (A) from the vehicle through the tailgate.

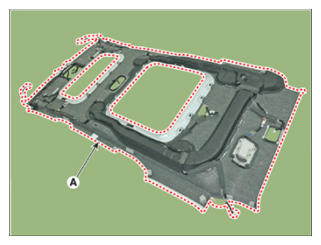

- Remove roof trim wiring harness from the roof trim (A).CAUTION:
- Take care not to damage the roof trim wiring harness when removing.
Information
- When installing the roof trim wiring harness on the roof trim, apply the hot melt continuously by using the hot melt gun tool.
- Put anti-noise pad on roof trim to prevent the noise.
- To install, reverse removal procedure.
Information
- Make sure the connector is connected in properly.
- Replace any damaged clips.
