Repair Procedures: Replacement
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

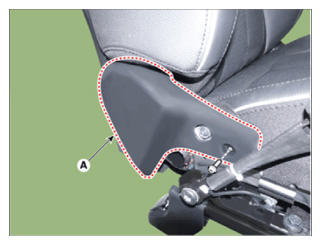

- Loosen the mounting screws and remove the front seat shield inner cover (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
