Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the front seat shield outer cover.

    (Refer to Front Seat - "FRONT SEAT OUTER SHIELD COVER ")

  3. Remove the front seat shield inner cover.

    (Refer to Front Seat - "Front Seat Shield Inner Cover ")

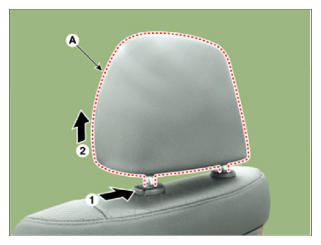

  4. Push the lock pin, remove the front seat headrest (A).
    G15472991Courtesy of HYUNDAI MOTOR AMERICA

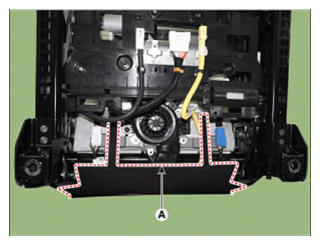

  5. Remove the front seat lower protector (A).
    G15472992Courtesy of HYUNDAI MOTOR AMERICA

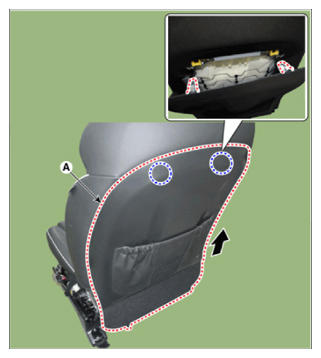

  6. Remove the front seat back board (A).
    CAUTION:
    • Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
    • Be careful not to damage the fixing clips.
    G15472993Courtesy of HYUNDAI MOTOR AMERICA

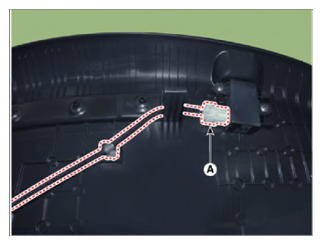

  7. Separate the front seat USB connector (A).
    G15472994Courtesy of HYUNDAI MOTOR AMERICA

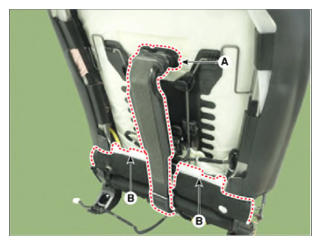

  8. Remove the front seat back duct (A) and lower protector (B).
    G15472995Courtesy of HYUNDAI MOTOR AMERICA

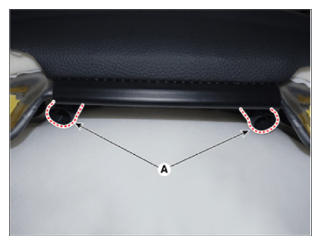

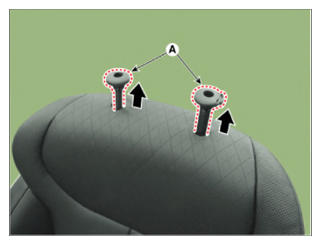

  9. Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both side of the lower part of the guides, and remove them.
    G15472996Courtesy of HYUNDAI MOTOR AMERICA
    G15472997Courtesy of HYUNDAI MOTOR AMERICA

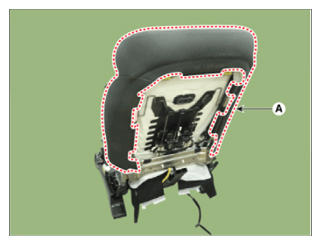

  10. Remove the protector (A) from the front seat back frame.
    G15472998Courtesy of HYUNDAI MOTOR AMERICA

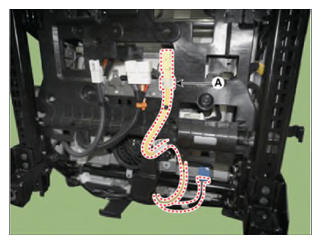

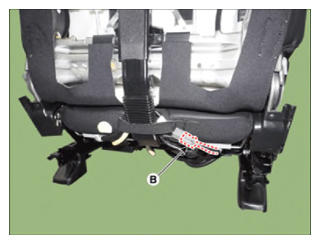

  11. Separate the front seat airbag wiring (A) and seat back heater connector (B) and remove the front seat back cover.
    G15472999Courtesy of HYUNDAI MOTOR AMERICA
    G15473000Courtesy of HYUNDAI MOTOR AMERICA

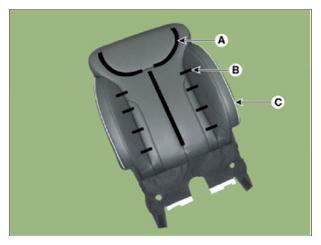

  12. Remove the velcro tape (A) and hog-ring clips (B) inside the front seat back cover and remove the seat back cover (C).
    G15473001Courtesy of HYUNDAI MOTOR AMERICA
  13. To install, reverse removal procedure.

    Information

    • Make sure that the connectors are connected completely
    • Replace any damaged clips (or pin-type retainers).

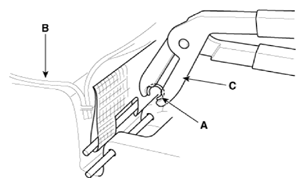

    • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
G15473002Courtesy of HYUNDAI MOTOR AMERICA
