Repair Procedures: Removal
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
- Remove the steering column upper and lower shrouds.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")
- Remove the clock spring.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING )

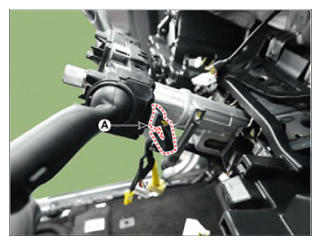

- Disconnect the multifunction switch connector (A).

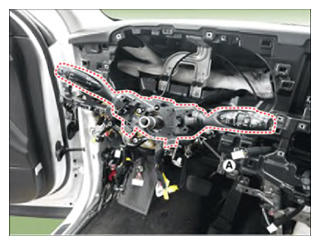

- Loosen the screws and then remove the multifunction switch assembly (A).
