Components And Components Location
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

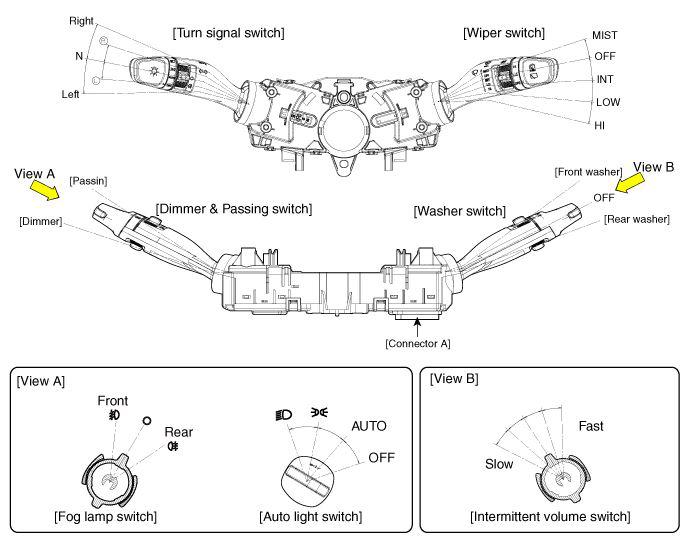

| Pin | Description |
|---|---|
| 1 | Front wiper switch signal |
| 2 | From wiper low tack signal |
| 3 | - |
| 4 | Rear washer motor switch power |
| 5 | Turn signal lamp switch [RH] |
| 6 | Front washer motor switch |
| 7 | Front wiper INT volume contact signal |
| 8 | Ignition 2 |
| 9 | Ground |
| 10 | Fog lamp switch signal |
| 11 | Ground |
| 12 | Turn signal lamp switch [LH] |
| 13 | Head lamp Passing/High beam switch |
| 14 | Light switch |
| 15 | Head lamp low back up signal |
| 16 | Rear wiper switch signal |
