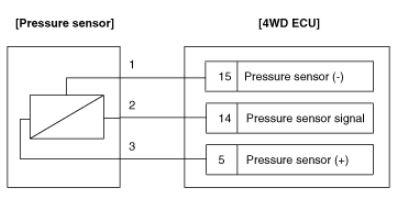

Circuit Diagram
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of HYUNDAI MOTOR AMERICA
|

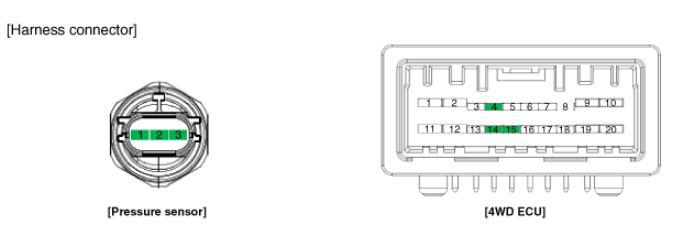

| Terminal |
Connected to |
Function |
| 1 |
4WD ECU (15) |
Pressure sensor (-) |
| 2 |
4WD ECU (14) |
Pressure sensor signal |
| 3 |
4WD ECU (5) |
Pressure sensor (+) |
 Courtesy of HYUNDAI MOTOR AMERICA
|
