Joint Assembly (Wheel Side): Installation
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
The type can replace the wheel side joint boot
NOTE:
- When assembling, be careful not to let dust and foreign substances enter.
- Driveshaft joints require special grease, so do not add any other type of grease.
- Boot bands must use the new one.

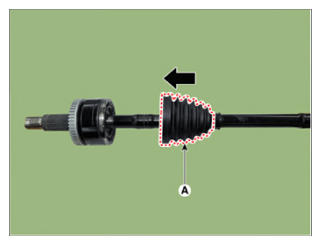

- Install the new boot (A) in the direction of the arrow.

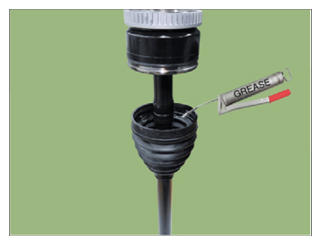

- Apply the grease specified inside the boot.NOTE:
- Use the grease provided with the joint/boot kit.
- Apply about 50 - 60% grease inside the boot.
- Driveshaft joints require special grease, so do not add any other type of grease.

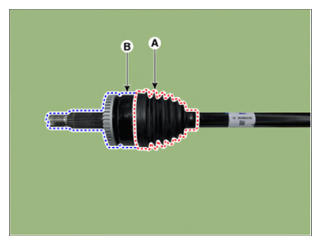

- Install the wheel side boot (A) into the housing (B).

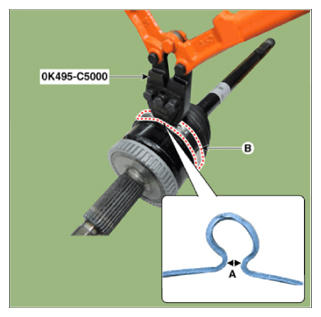

- Install the large diameter boot band (B) using SST (0K495-C5000).
Clearance (A): 2.0 mm or less.

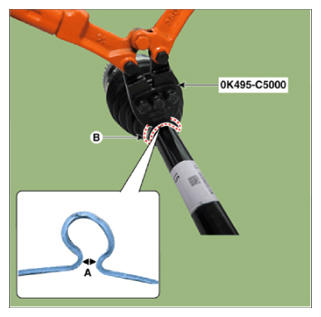

- Install the small diameter boot band (B) using SST (0K495-C5000).
Clearance (A): 2.0 mm or less.
- Install the dynamic damper.[If equipped]
(Refer to Driveshaft Assembly - "DYNAMIC DAMPER ")
- Install the transaxle side joint.
(Refer to Driveshaft Assembly - "Joint Assembly (Transaxle side) ")
- Install the front drive shaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
The type can not replace the wheel side joint boot
CAUTION:
- When assembling, be careful not to let dust and foreign substances enter.
- Driveshaft joints require special grease, so do not add any other type of grease.
- Boot bands must use the new one.

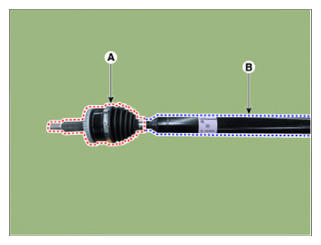

- Replace the wheel side joint assembly (A) and shaft (B).NOTE:
- The wheel side joint boot can not be replaced, so replace the wheel side joint assembly (A) and shaft (B) together as an assembly.
- Remove the dynamic damper.
(Refer to Driveshaft Assembly - "DYNAMIC DAMPER ")
- Install the transaxle side joint.
(Refer to Driveshaft Assembly - "Joint Assembly (Transaxle side) ")
- Install the front drive shaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
