Joint Assembly (Transaxle Side): Installation

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When assembling, be careful not to let dust and foreign substances enter.
Driveshaft joints require special grease, so do not add any other type of grease.
Boot bands must use the new one.

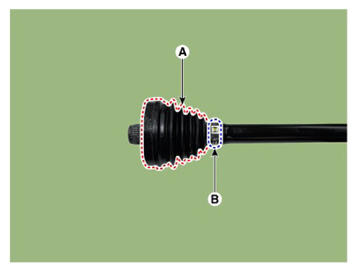

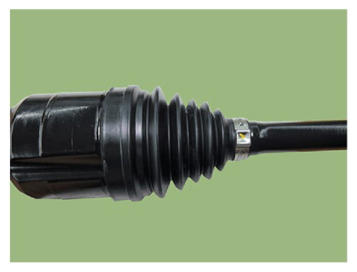

Install the transaxle side boot (A) and boot band (B) on the driveshaft.

NOTE:

Put the boot band (B) first on the drive shaft before installing the boot (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

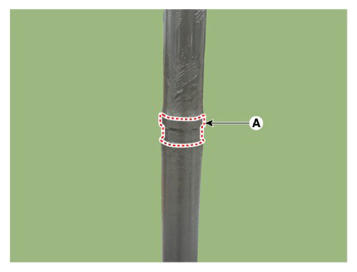

When installing the boot, seats in the mounting part (A).

Courtesy of HYUNDAI MOTOR AMERICA

Install the spider assembly (A) on the shaft (B), then press it using a mallet.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

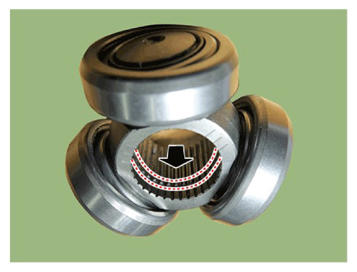

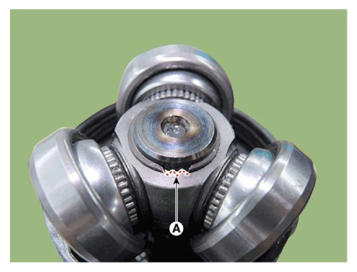

When installing the spider assembly (A), install it in the correct direction.

Installing in the wrong direction can cause secondary quality problems.

Courtesy of HYUNDAI MOTOR AMERICA

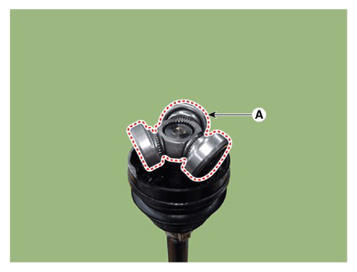

When installing the spider assembly, install it according to the boot shape.

Courtesy of HYUNDAI MOTOR AMERICA

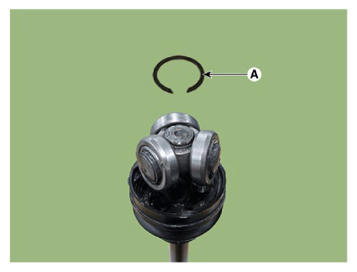

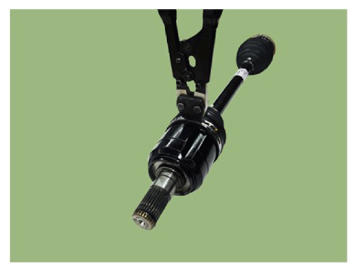

Install the snap ring (A) using the snap ring pliers.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When replacing the joint assembly, use the new one provided in the joint kit.
The snap ring must be new.

After installing the snap ring, make sure that there are only 2 - 3 splines in position (A).

Courtesy of HYUNDAI MOTOR AMERICA

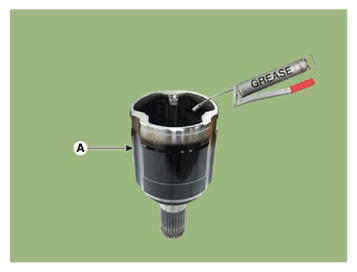

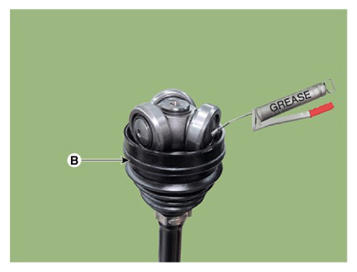

Apply specified grease inside the joint housing (A) and boot (B).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Use the grease provided with the joint/boot kit.
- Apply about 70% grease to the housing (A) and about 30% grease to the boot (B).
- Driveshaft joints require special grease, so do not add any other type of grease.

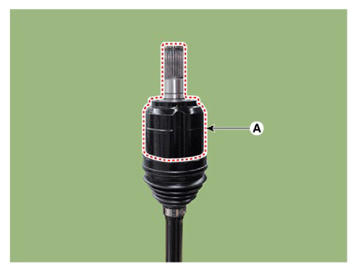

Install the trans axle side joint housing (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

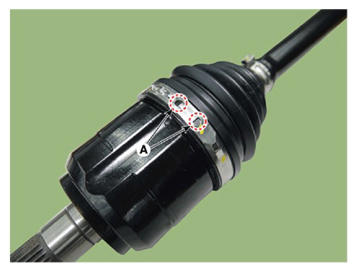

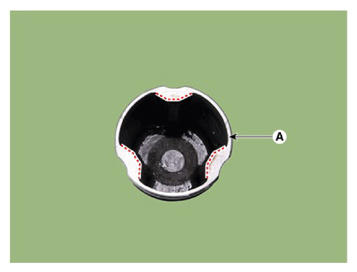

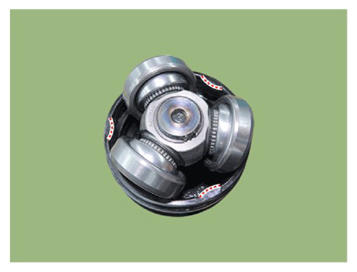

When installing the housing, turn the boot to fit each other.

If the shape of housing and boot does not fit, there is a possibility of leakage due to the gap. Be very careful.

Courtesy of HYUNDAI MOTOR AMERICA

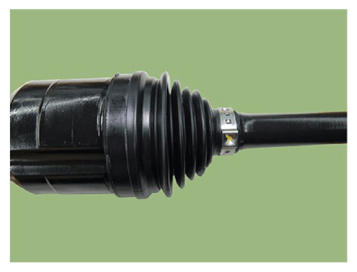

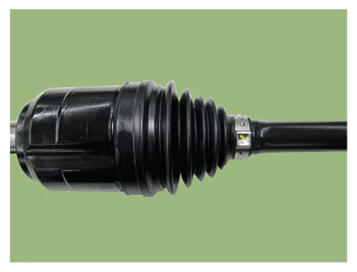

Adjust the air inside the boot to normal as shown below.

Normal	Lack of air	Too much air
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

After installing the joint housing, perform air bleeding by pressing it several times until no air is heard.

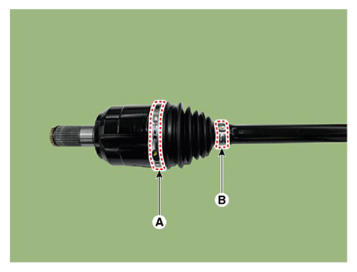

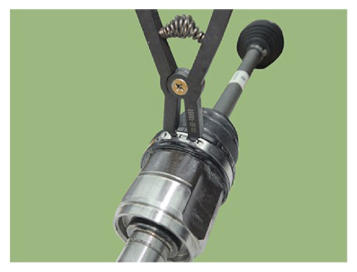

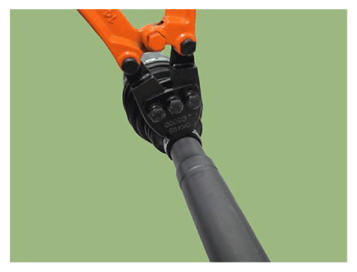

Install the transaxle side joint large diameter (A) and small diameter (B) boot band.

Courtesy of HYUNDAI MOTOR AMERICA

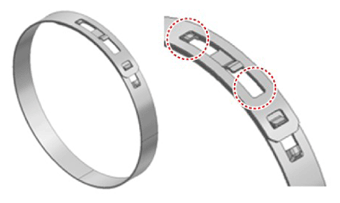

Ear type	Hook type	Hook type [Low profile]
SST (0K495-C5000)	SST (09495-39100)	SST (0K495-2W000)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Install in the following order: large diameter boot band → small diameter boot band.
Installing in the wrong order can cause leaks.

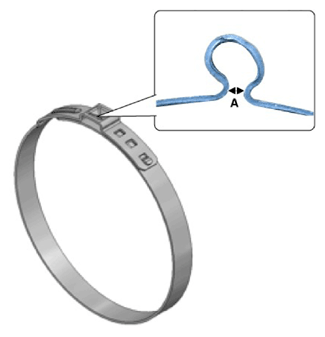

When installing the ear type boot band, check the clearance (A) as shown below.

Clearance (A): 2.0 mm or less.

Courtesy of HYUNDAI MOTOR AMERICA

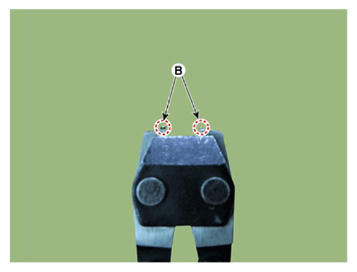

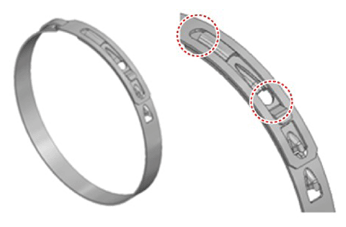

When using the low profile hook type boot band, fit the SST tip (B) into the boot band hole (A) as shown below.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
