Repair Procedures: Removal

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.

    (Refer to General Information - "LIFT AND SUPPORT POINTS ")

  1. Loosen the wheel nuts slightly.

    Raise the vehicle, and make sure it is securely supported.

  2. Remove the front wheel and tires.

    (Refer to Suspension System - "WHEEL ")

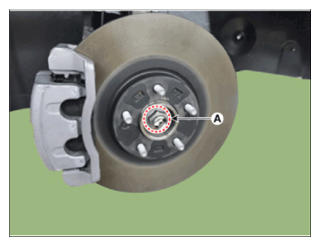

  3. Loosen the driveshaft caulking nut (A).

    Tightening torque:

    294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb-ft)

    G15477686Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • The driveshaft lock nut (A) should be replaced with new ones.

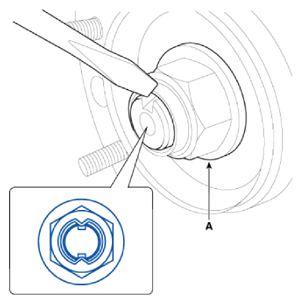

    • After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.

      Caulking depth:  1.5 mm (0.591 in.)

      G15477687Courtesy of HYUNDAI MOTOR AMERICA

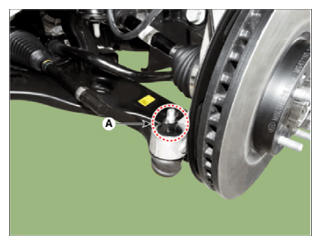

  4. Remove the tie rod end ball joint.
    1. Remove the split pin and nut (A).

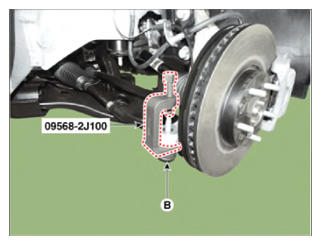

    2. Using SST (09568-2J100), separate the ball joint (B) from the knuckle.

      Tightening torque:

      98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

      G15477688Courtesy of HYUNDAI MOTOR AMERICA
      G15477689Courtesy of HYUNDAI MOTOR AMERICA

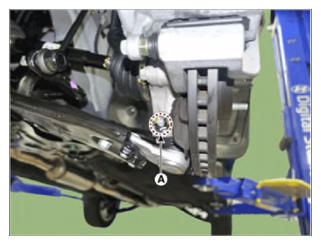

  5. Remove the split pin and nut (A).

    Tightening torque:

    98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

    G15477690Courtesy of HYUNDAI MOTOR AMERICA

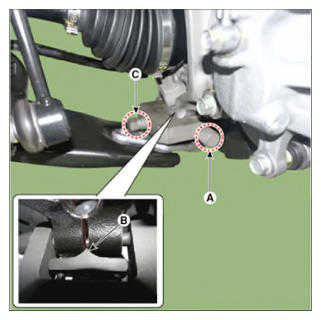

  6. Remove the lower arm from the knuckle by using the SST (09568-4R100).
    1. Install the support bolt (A) from lower arm bolt hole.
    2. Install the support body (B) from front axle.
    3. Tighten the bolt (C).
      G15477691Courtesy of HYUNDAI MOTOR AMERICA

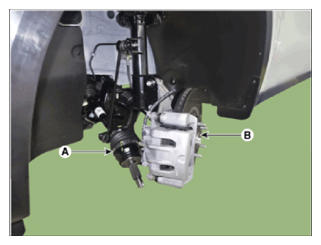

  7. Remove the driveshaft (A) from the front axle assembly (B).
    G15477692Courtesy of HYUNDAI MOTOR AMERICA

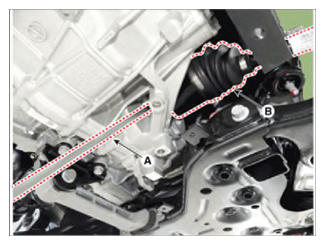

  8. Insert a prybar (A) between the transaxle case and joint case, and separate the driver side driveshaft (B) from the transaxle case.
    G15477693Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Use a pry bar (A) being careful not to damage the transaxle and joint.
    • Do not insert the pry bar (A) too deep, as this may cause damage to the oil seal.
    • Do not pull the driveshaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.
    • Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
    • Support the driveshaft properly.
    • Replace the retainer ring whenever the driveshaft is removed from the transaxle case.

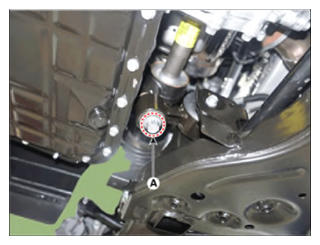

  9. Remove the inner shaft bracket mounting bolts (A).

    Tightening torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

    G15477694Courtesy of HYUNDAI MOTOR AMERICA

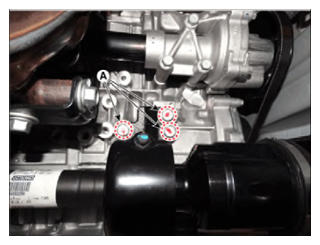

  10. Loosen the inner shaft mounting bolts (A) and then remove the passenger side driveshaft.

    Tightening torque:

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

    G15477695Courtesy of HYUNDAI MOTOR AMERICA
