Dynamic Damper: Removal

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front drive shaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the trans axle side joint.

    (Refer to Driveshaft Assembly - "Joint Assembly (Transaxle side) ")

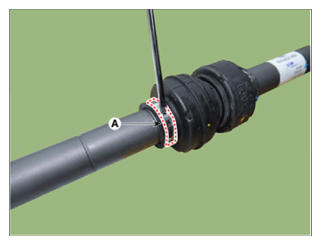

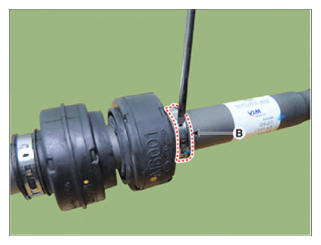

  3. Remove the dynamic damper band (A, B) using driver (-).
    G15477696Courtesy of HYUNDAI MOTOR AMERICA
    G15477697Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the dynamic damper, lubricate the shaft with soapy water to prevent shaft damage.

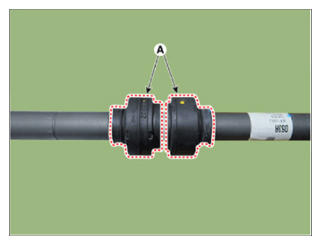

  4. Remove the dynamic damper (A).
    G15477698Courtesy of HYUNDAI MOTOR AMERICA
