Dynamic Damper: Installation

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

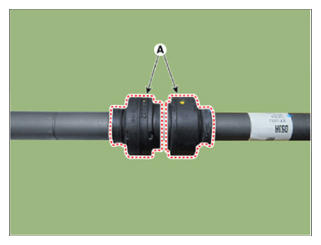

  1. Install the dynamic damper (A).
    G15477699Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing the dynamic damper, install it in set with the mounting part (A) of the shaft.

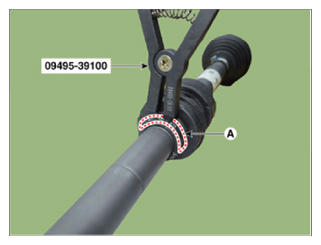

  2. Install the dynamic damper band (A) using SST (09495-39100).
    G15477700Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the transaxle side joint.

    (Refer to Driveshaft Assembly - "Joint Assembly (Transaxle side) ")

  4. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
