Repair Procedures: Removal

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel. (Refer to Body - "CRASH PAD CENTER PANEL ")

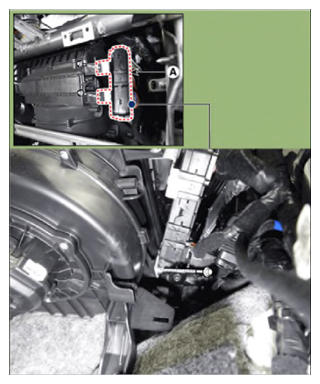

  3. Remove the IBU (A) after loosening mounting bolt and nuts.
    G15479999Courtesy of HYUNDAI MOTOR AMERICA

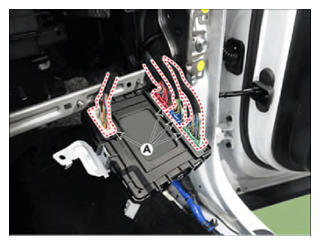

  4. Disconnect the IBU connector (A).
    G15480000Courtesy of HYUNDAI MOTOR AMERICA
