Components & Components Location: Components

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

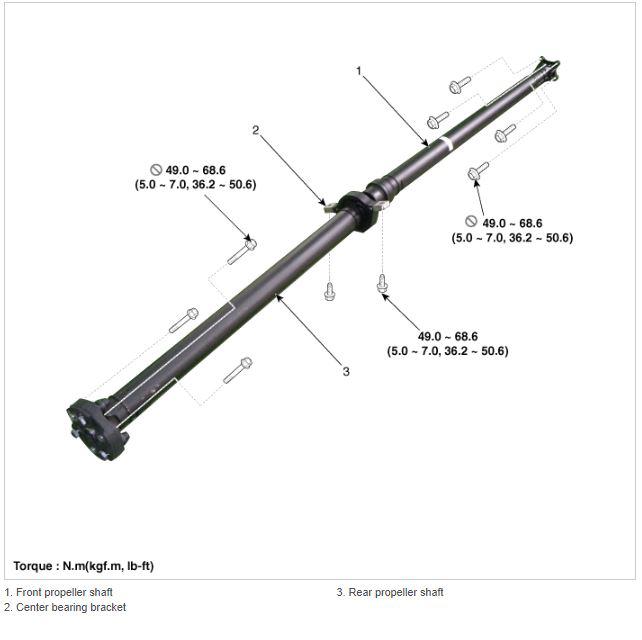

Fig 1: Propeller Shaft Components Location With Torque Specification
G15477770Courtesy of HYUNDAI MOTOR AMERICA
