Repair Procedures: Removal
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the front wheel and tires.
(Refer to Suspension System - "WHEEL ")

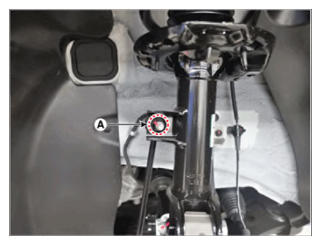

- Disconnect the stabilizer link with the front strut assembly after loosening the nut (A).
Tightening torque:
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)
NOTE:- When loosening the nut (A), fix the outer hexagon of stabilizer bar link.
- Be careful not to damage the stabilizer link boots.

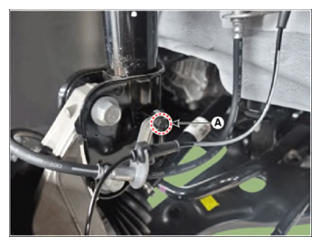

- Loosen the mounting bolt (A) and then remove the brake hose bracket from the strut assembly.
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

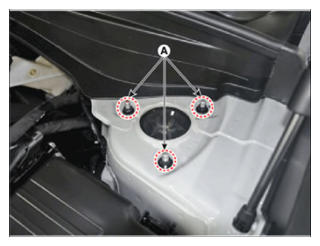

- Loosen the upper strut mounting nuts (A).
Tightening torque:
53.9 - 73.9 N.m (5.5 - 7.5 kgf.m, 39.8 - 54.2 lb-ft)

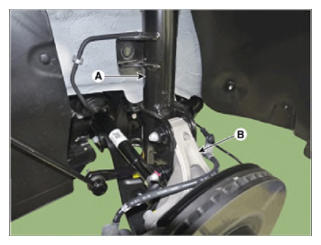

- Remove the front strut assembly (A) from the front axle (B) by loosening the bolts & nuts.
Tightening torque:
196.1 - 215.7 N.m (20.0 - 22.0 kgf.m, 144.7 - 159.1 lb-ft)
