Repair Procedures: Reassembly
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
- Install the insulator, spring pad, coil spring and dust cover from the strut assembly.

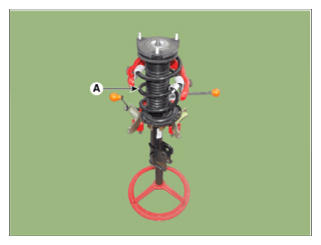

- Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation

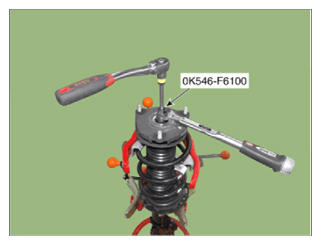

- Using the special tool (0K546-F6100), install the self locking nut.NOTE:
- Do not reuse the self locking nut.
Tightening torque:
107.9 - 117.7 N.m (11.0 - 12.0 kgf.m, 79.6 - 86.8 lb-ft)
