Repair Procedures: Disposal

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully extend the piston rod.

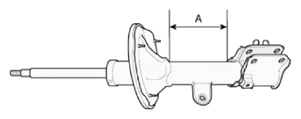

  2. Drill a hole on the A section to remove gas from the cylinder.
    G15477864Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The gas coming out is harmless, but be careful of chips that may fly when drilling.
    • Be sure to wear safety goggles or eye protection when performing this task.
