Repair Procedures: Removal

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.

    (Refer to General Information - "LIFT AND SUPPORT POINTS ")

  1. Loosen the wheel nuts slightly.

    Raise the vehicle, and make sure it is securely supported.

  2. Remove the front wheel and tires.

    (Refer to Suspension System - "WHEEL ")

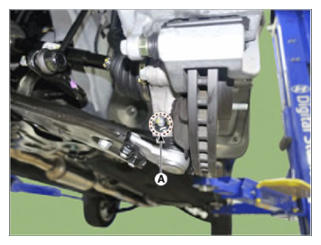

  3. Remove the split pin and nut (A).

    Tightening torque:

    98.0-117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

    G15477867Courtesy of HYUNDAI MOTOR AMERICA

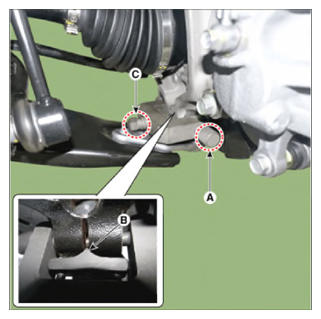

  4. Remove the lower arm from the knuckle by using the SST (09568-4R100).
    1. Install the support bolt (A) from lower arm bolt hole.
    2. Install the support body (B) from front axle.
    3. Tighten the bolt (C).
      G15477868Courtesy of HYUNDAI MOTOR AMERICA

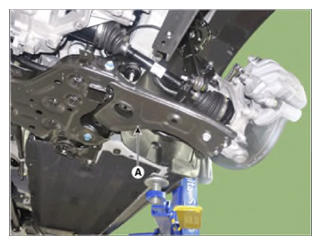

  5. Remove the front lower arm (A) after loosening the bolts & nuts.

    Tightening torque

    Front:

    117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb-ft)

    Rear:

    156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

    G15477869Courtesy of HYUNDAI MOTOR AMERICA
