Diagnostic Flowchart

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

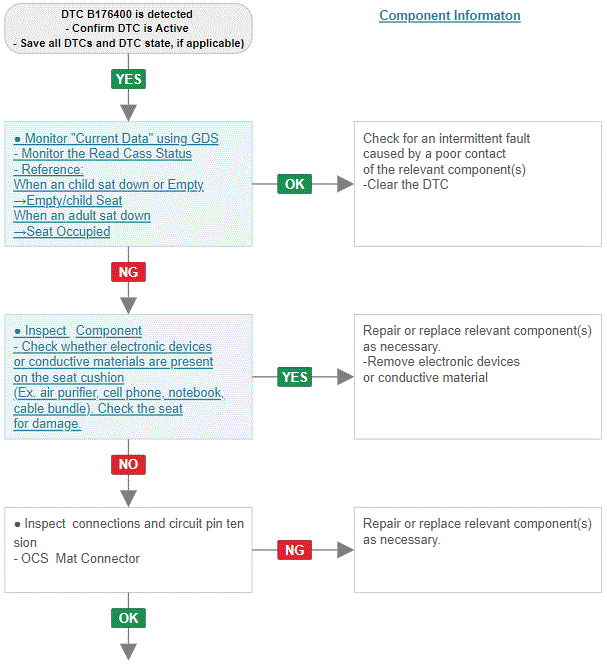

Fig 1: 1 Of 2
G15501770Courtesy of HYUNDAI MOTOR AMERICA

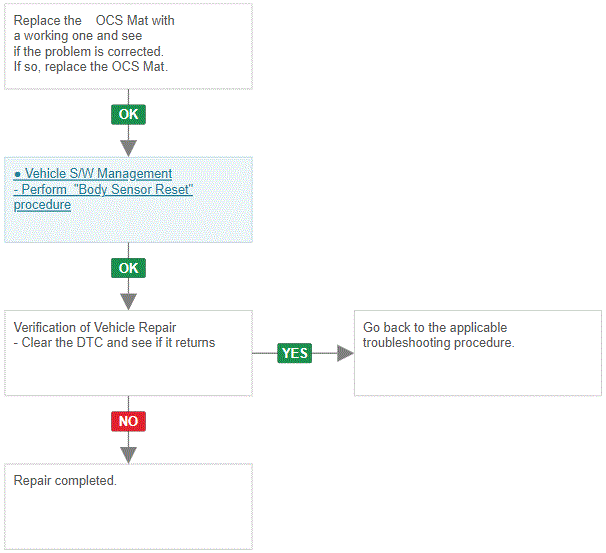

Fig 2: 2 Of 2
G00635263Courtesy of HYUNDAI MOTOR AMERICA
