Repair Procedures: Replacement
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

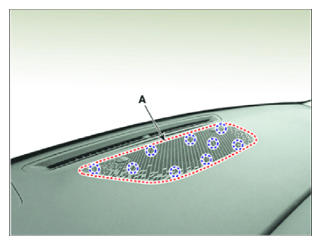

- Using a remover and remove the center speaker grill (A).

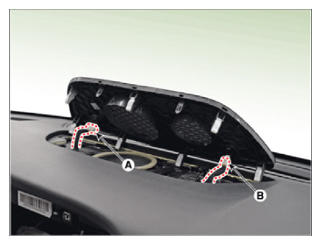

- Separate the photo sensor connector (A) and security sensor connector (B).

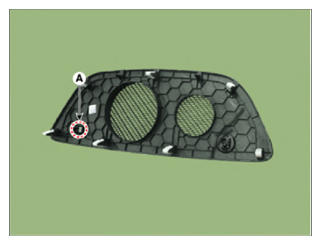

- Remove the photo sensor (A).
- Install in the reverse order of removal.
Information
- Make sure the hood latch release cable is connected properly.
- Replace any damaged clips (or retainers or fasteners).
