Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery (-) terminal.
  2. Remove the crash pad center panel. (Refer to Body (Interior and Exterior) - "CRASH PAD CENTER PANEL ")

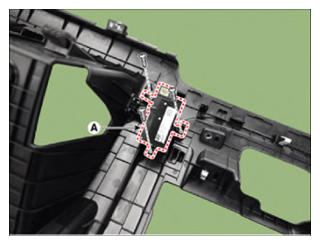

  3. Loosen the mounting screws, remove the PM sensor (A).
    G15480153Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
