Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Loosen the mounting screws and remove the evaporator core cover (A).
    G15480139Courtesy of HYUNDAI MOTOR AMERICA

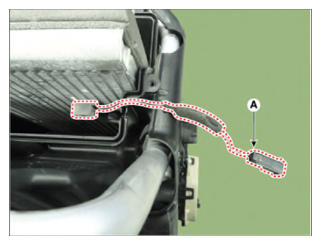

  3. Separate the evaporator temperature sensor (A) from the evaporator core.
    G15480140Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
