Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant with a recovery/recycling/charging station.
Disconnect the negative (-) battery terminal.
Remove the front bumper. (Refer to Body - "FRONT BUMPER COVER ")
Remove the front bumper beam assembly (Refer to Body - "FRONT BUMPER BEAM ASSEMBLY ")

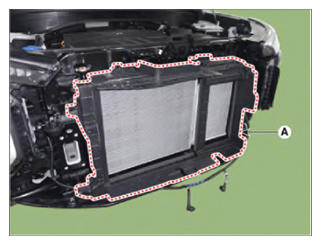

Loosen the mounting bolts, screws and remove the upper air guard (A).

Courtesy of HYUNDAI MOTOR AMERICA

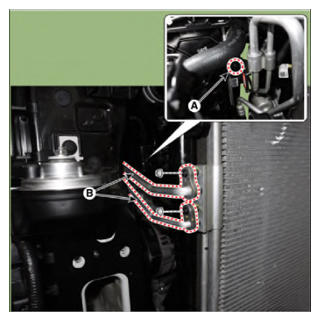

Loosen the mounting nuts and separate the suction line (A), discharge line (B).
Tightening torque:

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

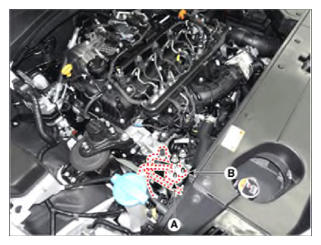

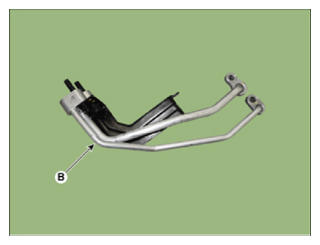

Remove the refrigerant pipe & tube assembly (B) after removing the bolt (A) and nuts.
Tightening torque:

Nut: 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Bolt: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

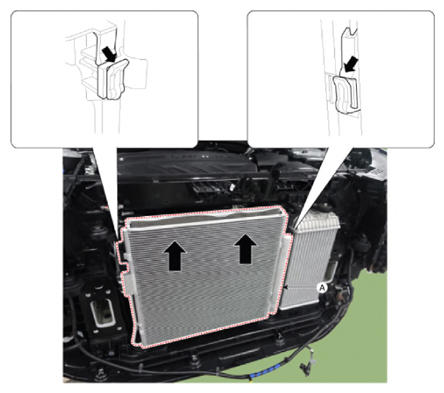

Press the lock pin and remove the condenser assembly (A) from radiator assembly.

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
CAUTION:
- If you're installing a new condenser, add refrigerant oil.
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-1234yf to avoid leakage.
- Be careful not to damage the radiator and condenser fins when installing the condenser.
- Charge the system, and test its performance.
