Repair Procedures: Removal
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
- If a compressor is available, the air conditioner is operated for a few minutes in the engine idle state and then the engine is stopped.
- Disconnect the negative (-) battery terminal.
- Recover the refrigerant with a recovery/charging station.
- Loosen the drive belt. (Refer to Engine Mechanical System - "DRIVE BELT ")

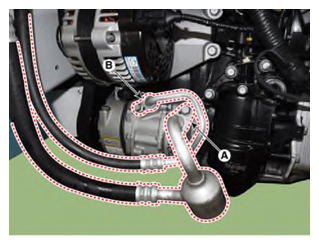

- Loosen the mounting nuts and separate the suction line (A), discharge line (B).
Tightening torque:
21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb-ft)
NOTE:- Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.

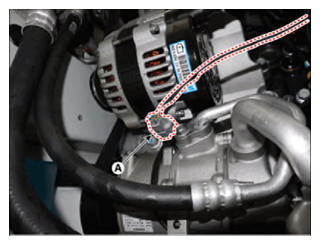

- Press the lock pin and separate the ECV connector (A).

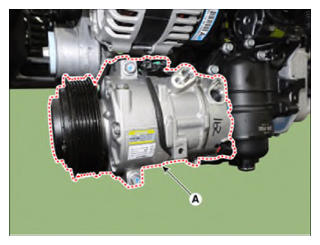

- Loosen the mounting bolts and remove the compressor assembly (A).
Tightening torque:
19.6 - 33.3 N.m (2.0 - 3.4 kgf.m, 14.8 - 24.6 lb-ft)
