Repair Procedures: Replacement
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Disconnect the negative (-) battery terminal.

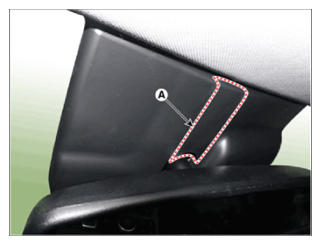

- Remove the rain sensor inner cover (A).

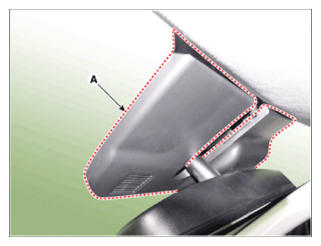

- Remove the rain sensor cover (A).

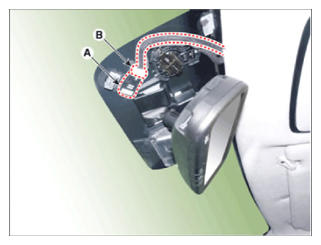

- Separate the auto defogging sensor connector (B) and remove the auto defogging sensor (A).
- Install in the reverse order of removal.
Information
- Be careful to damage the windshield glass.
- Make sure the hood latch release cable is connected properly.
