Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper. (Refer to Body - "FRONT BUMPER COVER ")

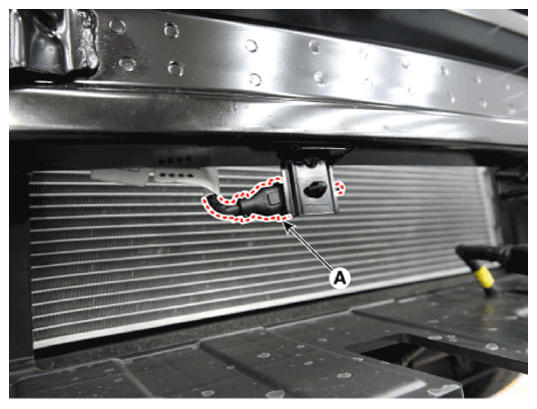

  3. Disconnect the connector and then remove the ambient temperature sensor (A).
    G15480148Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
