Repair Procedures: Replacement
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Recover the refrigerant with a recovery/charging station.

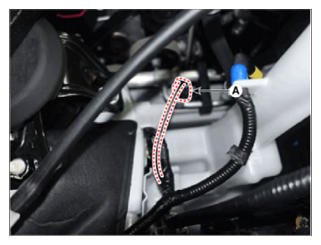

- Disconnect the A/C pressure transducer connector (A).

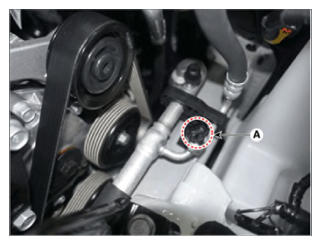

- Remove the A/C pressure transducer (A).
Tightening torque:
10 - 12 N.m (1.02 - 1.22 kgf.m, 7.4 - 8.8 lb-ft)
- Install in the reverse order of removal.CAUTION:
- When installing, replace it with a new O-ring (A).
