Electrical System
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

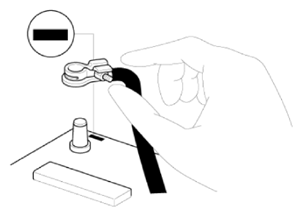

- Be sure to disconnect the battery cable from the negative (-) terminal of the battery.
- Never pull on the wires when disconnecting connectors.
- Locking connectors will click when the connector is secure.
- Handle sensors and relays carefully. Be careful not to drop them against other parts.
 Courtesy of HYUNDAI MOTOR AMERICA
|
