Connector assembly status test

  1. Remove the connector (A) and reinstall it.

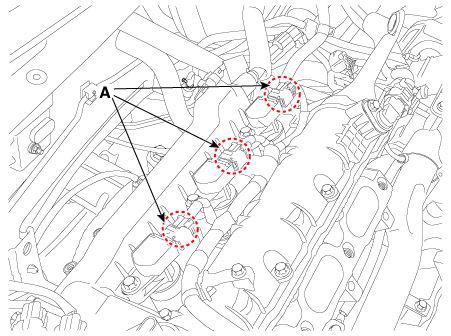

    G14423603Courtesy of HYUNDAI MOTOR AMERICA

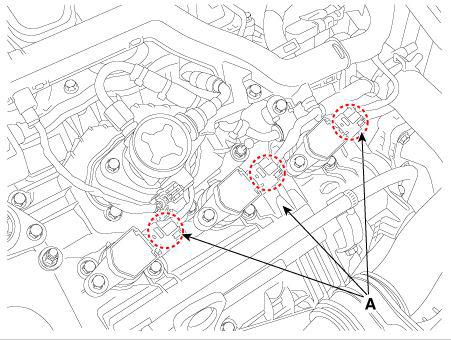

    G14423604Courtesy of HYUNDAI MOTOR AMERICA

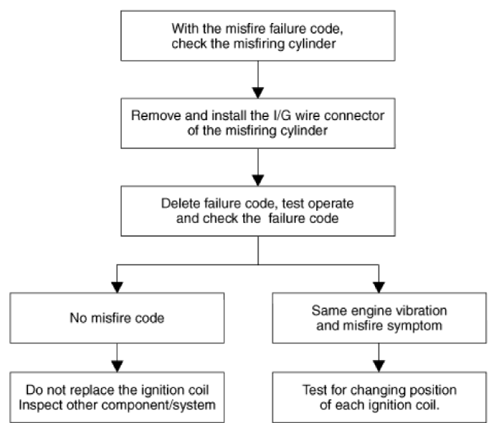

    G14423605Courtesy of HYUNDAI MOTOR AMERICA
