Home >> Hyundai >> 2021 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (6 Of 9) >> DTC P061B-00: Internal Control Module Torque Calculation Performance >> Troubleshooting >> Diagnostic Flowchart

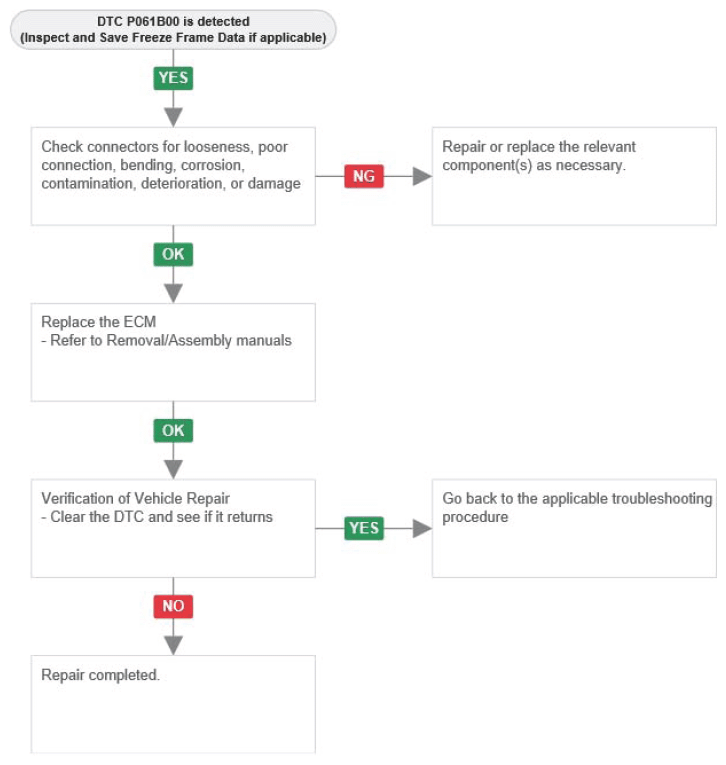

Diagnostic Flowchart

G14460803Courtesy of HYUNDAI MOTOR AMERICA
