Home >> Hyundai >> 2021 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (6 Of 9) >> DTC P0610-00: Control Module Vehicle Option Error >> Troubleshooting >> Diagnostic Flowchart

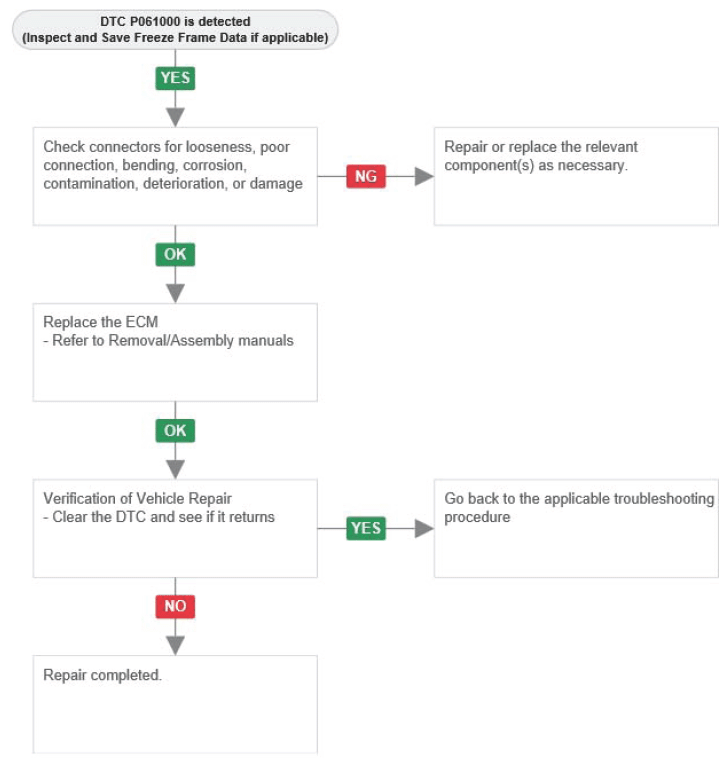

Diagnostic Flowchart

G14460798Courtesy of HYUNDAI MOTOR AMERICA
