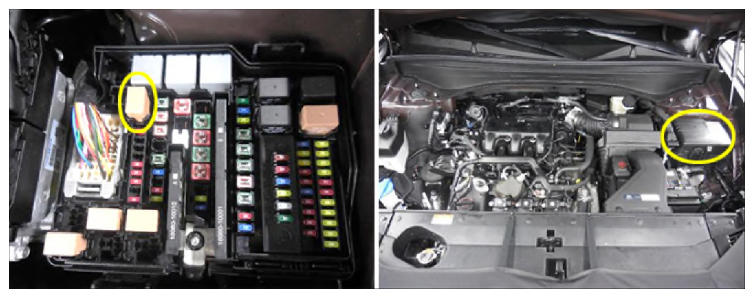

Starter Relay

G14460429Courtesy of HYUNDAI MOTOR AMERICA

With start signal from IG key, Engine Control Module (ECM) grounds a coil of starter relay in order to start engine. In case of ISG, ECM starts engine if idle stop release condition or auto-start condition are met.
