Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to "FUEL PUMP ")

  2. Disconnect the electric pump wiring connector (A), and the fuel sender connector (B).
    G14424069Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the fixing clip (A), and then disconnect the feed tube (B).
  4. Remove the head assembly (C) after releasing the cushion fixing clip (D).
    G14424070Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the reservoir-cup after releasing the fixing hook (A).
    G14424071Courtesy of HYUNDAI MOTOR AMERICA

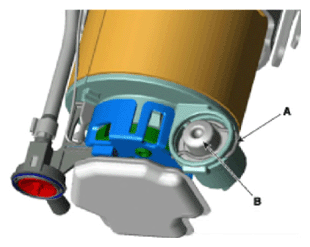

  6. Remove the fuel pressure regulator fixing clip (A).
  7. Remove the fuel pressure regulator (B) from the fuel filter.
    G14424072Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the pre-filter (B) after releasing the fixing hooks (A).
  9. Remove the fuel pump motor (C) from the fuel filter (D) by pulling it in down direction.
    G14424073Courtesy of HYUNDAI MOTOR AMERICA
    G14424074Courtesy of HYUNDAI MOTOR AMERICA
