Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

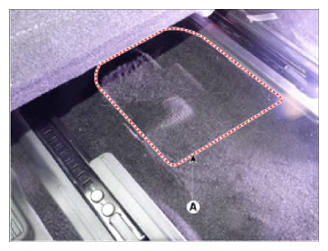

  2. Remove the floor carpet service cover (A).
    G14424059Courtesy of HYUNDAI MOTOR AMERICA

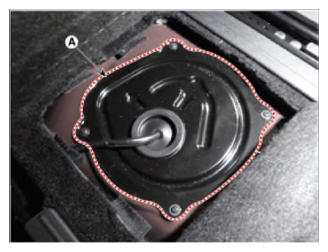

  3. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G14424060Courtesy of HYUNDAI MOTOR AMERICA

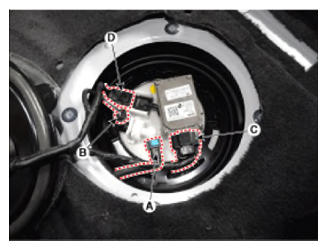

  4. Disconnect the fuel feed tube quick-connector (A) and fuel pressure sensor connector (B) and fuel pump control module (C).
  5. Disconnect the fuel tank pressure sensor connector (D).
    G14424061Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the fuel pressure sensor from the fuel pump.
    G14424062Courtesy of HYUNDAI MOTOR AMERICA
