Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to "FUEL PUMP ")

  2. Disconnect the electric pump wiring connector (A), and the fuel sender connector (B).
    G14424077Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the fixing clip (A), and then disconnect the feed tube (B).
  4. Remove the head assembly (C) after releasing the cushion fixing clip (D).
    G14424078Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the reservoir-cup after releasing the fixing hook (A).
    G14424079Courtesy of HYUNDAI MOTOR AMERICA

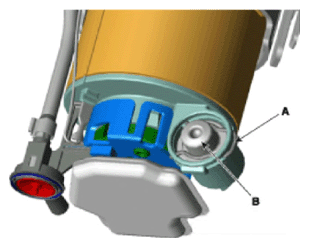

  6. Remove the fuel pressure regulator fixing clip (A).

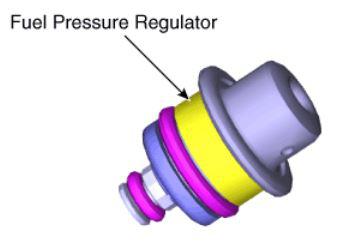

  7. Remove the fuel pressure regulator (B) from the fuel filter.
    G14424080Courtesy of HYUNDAI MOTOR AMERICA
    G14424081Courtesy of HYUNDAI MOTOR AMERICA
