Front Door Lock Module Inspection

  1. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  2. Remove the front door module.

    (Refer to Body - "FRONT DOOR MODULE ")

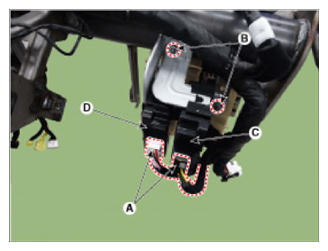

  3. Disconnect the connector from the actuator.
    G14424020Courtesy of HYUNDAI MOTOR AMERICA
    No Pin Information
    LH RH
    1 - M2
    2 - M3
    3 COM -
    4 Lock/Unlock Switch AJAR
    5 AJAR Lock/Unlock switch
    6 - COM
    7 M3 -
    8 M2 -

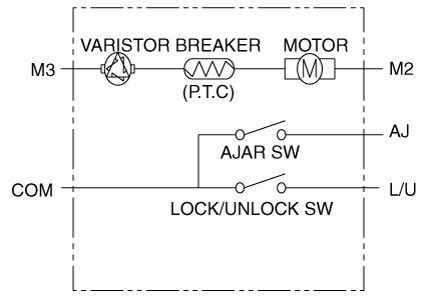

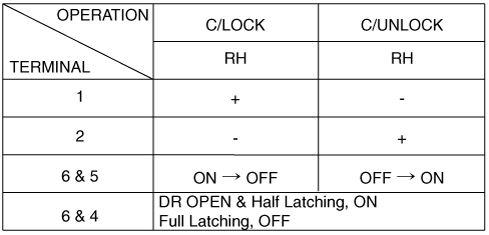

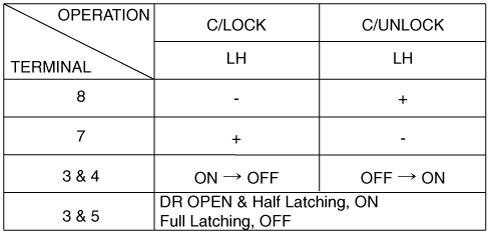

  4. Check actuator operation by connecting power and ground as shown in illustration below. To prevent damage to the actuator, apply battery voltage only momentarily.
    G14424021Courtesy of HYUNDAI MOTOR AMERICA
    G14424022Courtesy of HYUNDAI MOTOR AMERICA
    G14424023Courtesy of HYUNDAI MOTOR AMERICA
